DROK 24V Power Supply, AC 110V/220V to DC 0-24V 0-20A 480W Buck Converter, Volt Amp Adjustable Adapter Regulated 5V 12V 24V Volt Switching Voltage LED Transformer Charger for Computer CCTV Lab

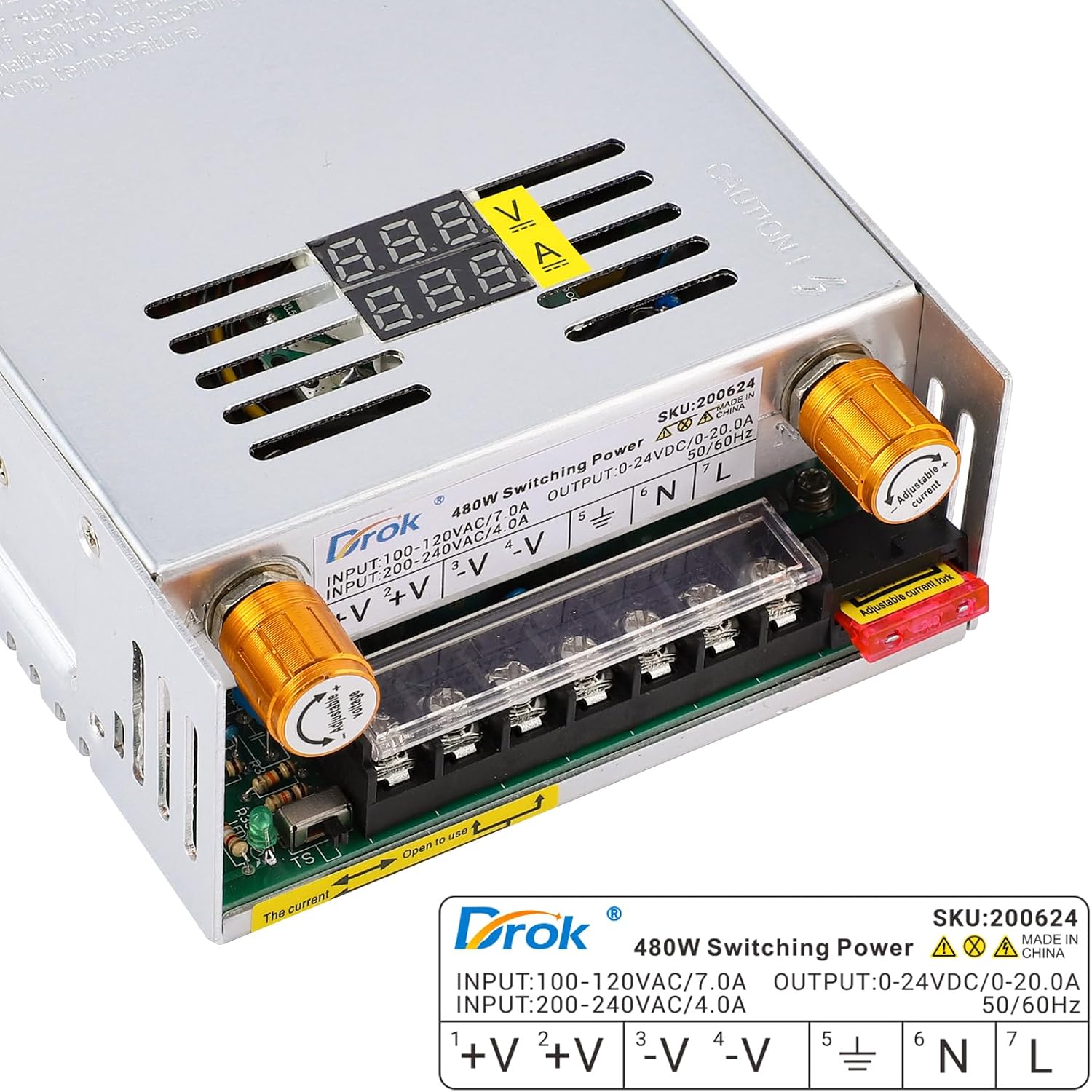

DROK 24V 20A Adjustable Voltage Current Power Supply 480W AC to DC Converter Parameters: Input voltage: AC 110-220V ± 15% Output: DC 0-24V 20A Rated power: 480W Product Dimension: 215x115x50mm / 8.46x4.53x1.97inch Features: Ultra-quiet, high stability and high accuracy. With intelligent temperature control cooling fan, it will work automatically when this power converter needs to cool down and stop when no need to cool down. Wiring: : Ground N: Null wire L: Live wire V+: DC output + V-: DC output - Instructions for use: The current is adjustable and max current is 20A. This power converter will work for any devices below 20A but will not work for any devices above 10A. Note: Before using, please select the input voltage 110V/220V according to your local voltage, to avoid damaging, switch is at right side of the item. If use motor, fan and other inductive load, please pay attention to the load's maximum starting current parameter. This parameter shall not be higher than the power supply’s max current. Otherwise it may damage the power supply. Or allocate the soft starting protection circuit for the load to absorb the impact current. Applications: Widely used in industrial automation, broadcasting, LED display, communications, security cameras, lighting, computer. Also works great for a CNC project. Package includes: 1 x AC-DC Switch Power Supply

• 【Volt Amp Adjustment】 Input Voltage can be 110V or 220V. Wide adjustable output Voltage range: DC 0-24V. This supply is suitable for 5V 9V 12V 24V devices. The voltage precision is 0.1V. Note——The maximum current is 20A. But the ouput current can be adjusted by the potentiometer. No matter how many voltage is adjusted, the max current should not be higher than 20A. It can be used to device of 2A 3A 5A 10A 12A 15A 20A. Make sure to use the devices which is below 20A.

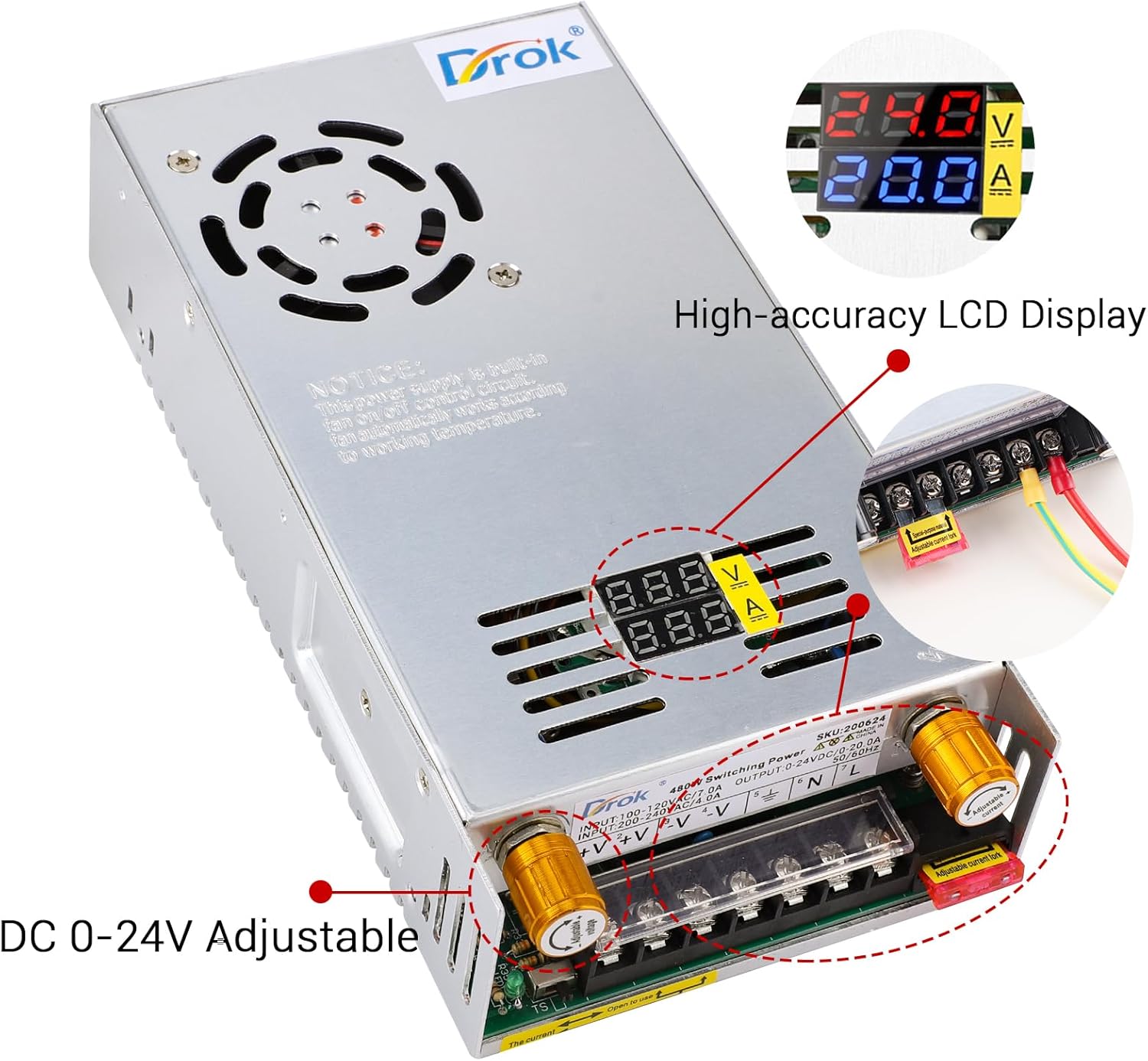

• 【Hareware】 This Buck Converter is equipped with LED screen, heat sink and cooling fan. The LED screen can clearly display the output voltage and output current. Heat sink and cooling fan can control the temperature in a safe range. During the running power is high, the cooling fan will automatically activate with little noise.
• 【Easy Operation】 This supply is no need to install, after connecting wire, it can be used to adjust output, which is convenient. The potentiometer is inset into the supply. Only to rotate the potentiometer can adjust output parameter.
• 【Protection】 Over Load Protection, Over Voltage Protection, Short Circuit Protection, which can protect your device from damage. Note: the default input voltage is 220V, before using, please switching the input voltage to 110V/220V according to your city voltage.
• 【Wide Application】 This power supply has variable application. It can be used as a 5V 12V 24V power supply for RV, Car, Labtop, Computer, Lab, CCTV, etc. All of our item has 1 year long time warranty guarantee.
